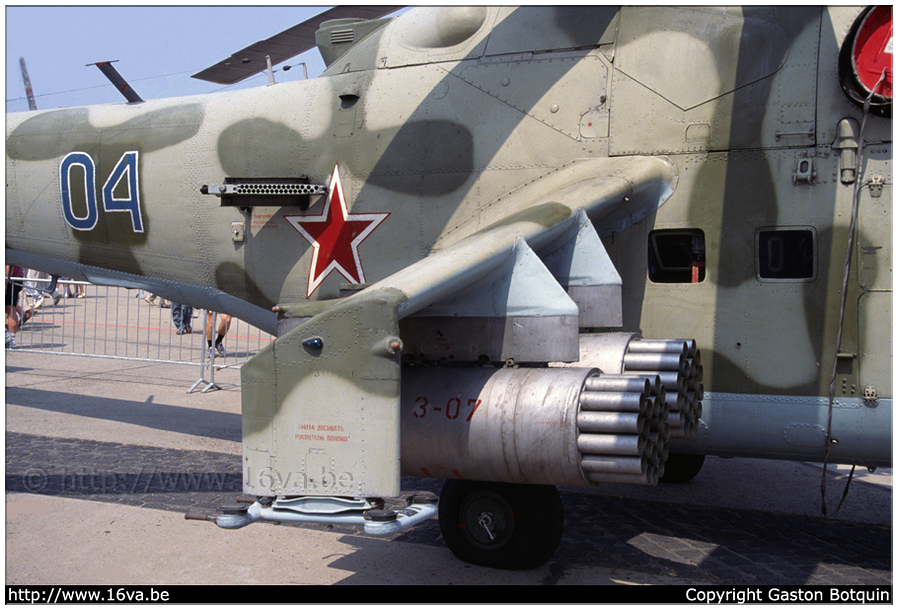

A Mi-24V equipped with B-8V20 rocket pods. There was a single ASO-2V-02 flare launcher - instead of three - on the fuselage side.
The white dot below was one of the receiving antennas of the SRO-1P Parol' IFF system.
The base for a Lipa IR jammer was there, however the system was not mounted. Two Shturm ATGM launchers were attached
to the wingtip endplate. One antenna of the SPO-10 Sirena-3M RHAWR was pointing forward on the endplate leading edge and another
one was pointing rearward on the trailing edge of the outboard wing pylon.
|

|
